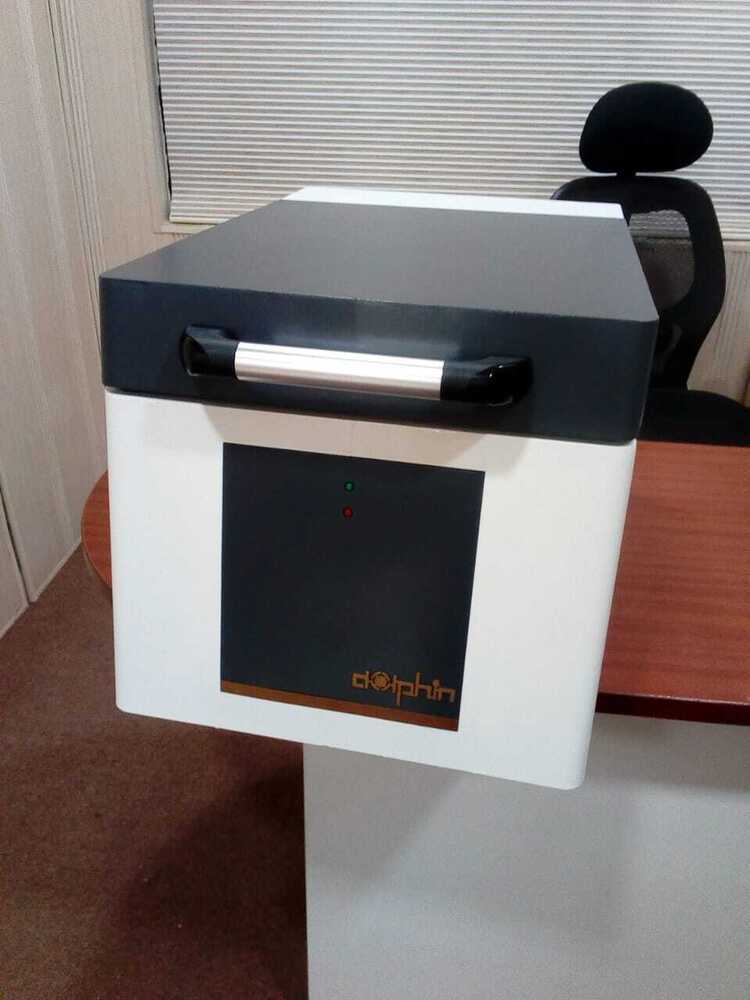

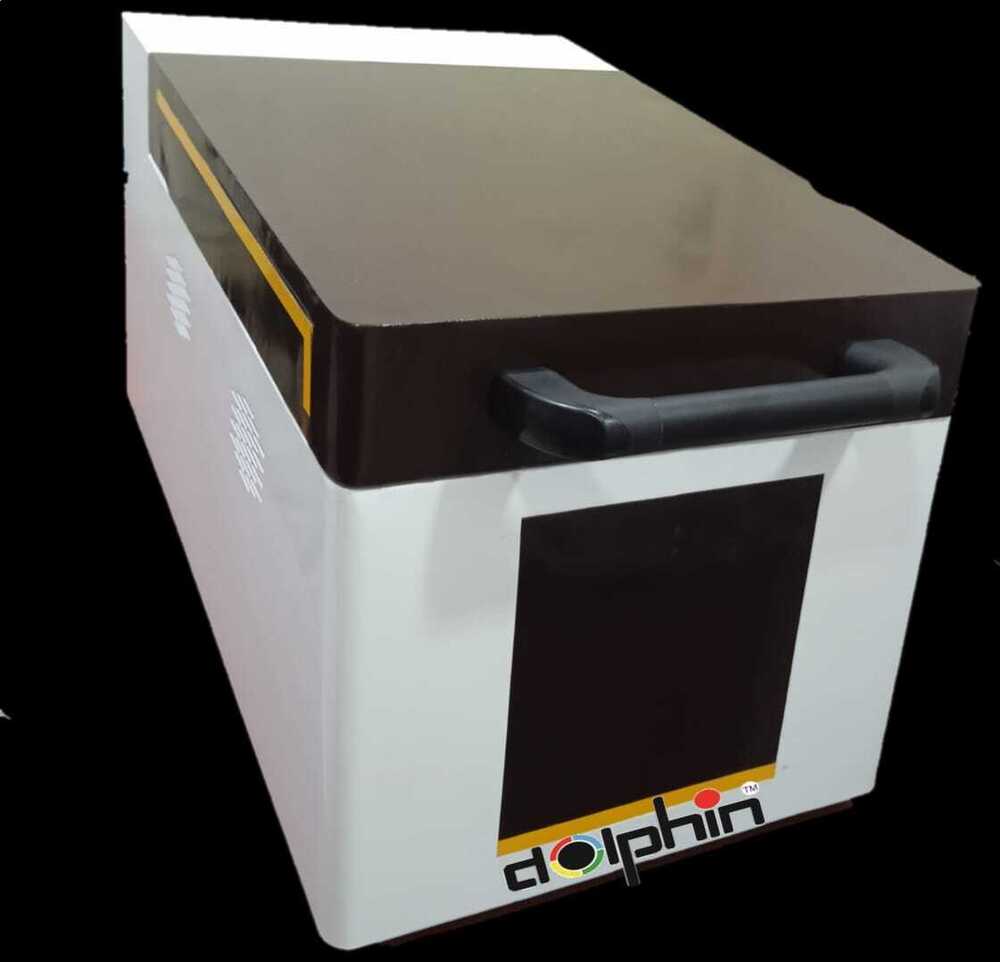

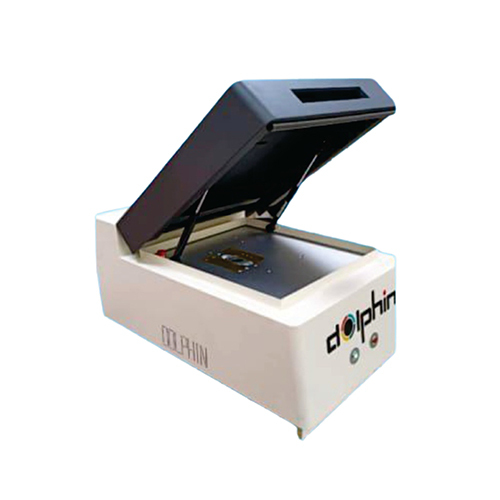

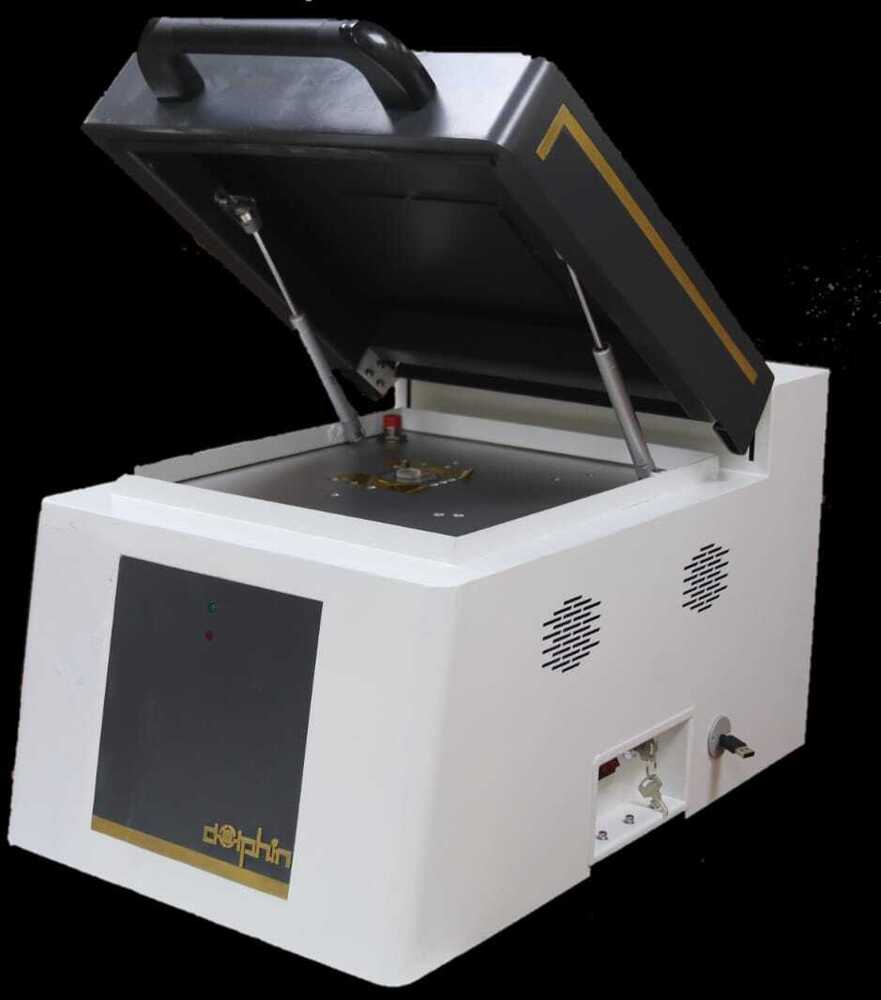

Gold Testing Machine Model- FSDD 550

Product Description

The "DOLPHIN"FSDD -550 Gold Testing Machine Specifications

TheFSDD Gold Testing Machineis a high-end, advanced XRF-based solution designed forhallmarking centres, bullion traders, refineries, and touch centres, delivering ultra-fast and highly accurate metal analysis.

Key Specifications:

• Technology:XRF (X-Ray Fluorescence) Non-destructive testing
• Detector Type:FSDD (Fast Silicon Drift Detector USA)
• Detection Capability:72 element analysis
• Element Range:Sodium (Na) to Uranium (U)
• Accuracy:Up to 0.10% for gold ,+_0.25 for Silver
• Analysis Range:1 ppm 99.99% purity detection

Performance:

• Testing Time:10 seconds (adjustable)
• Sample Types:Solid, liquid, and powder samples
• Results:Instant composition & purity analysis
• Repeatability:High stability with excellent consistency

System & Hardware:

• X-ray Tube:Micro-focus tungsten tube (up to 70 kV)
• Detector Resolution:135140 eV high-resolution detection
• Camera:Inbuilt high-resolution CCD camera for sample positioning
• Computer:External industrial PC system
• Cooling System:Air-cooled / inbuilt cooling system
• Power Supply:110230V AC, 50/60 Hz

Features:

• Non-destructive testing (no damage to jewellery)
• Detects gold, silver, platinum, and trace elements like cadmium, iridium, etc.
• Capable of analyzing coatings, alloys, and plating
• High-speed testing with superior accuracy
• Detects fake or gold-plated jewellery instantly
• Advanced software with report generation

Applications:

• Hallmarking Centres
• Bullion & Jewellery Showrooms
• Gold Refineries & Assaying Labs
• Banks & NBFCs
• Touch / Tounch Centres

Power & Physical Details:

• Power Consumption:120W
• Weight:Approx. 3540 kg
• Operation:Continuous heavy-duty use
• Maintenance:Low maintenance

Approvals:

• Approved byGovernment of India (AERB)
• BIS compliant (model dependent)
