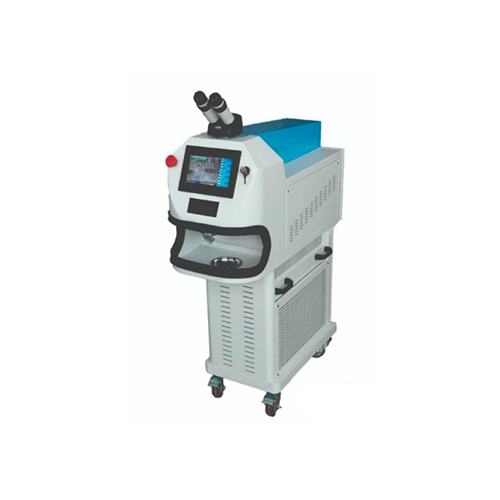

Product Description
Our Laser Soldering Machine is a high-precision solution designed for jewellery manufacturers, hallmark centres, and repair workshops. This advanced machine uses a focused laser beam to perform accurate and clean welding of gold, silver, platinum, and other metals without damaging surrounding areas or stones.
It ensures strong joints, minimal heat impact, and excellent finishing, making it ideal for delicate jewellery work and intricate designs.
Key Features
- High precision micro welding
- No damage to stones or surrounding metal
- Strong and clean joints
- Adjustable laser parameters
- Built-in microscope / CCD camera
- User-friendly operation
- Foot pedal control system
- Low maintenance and long life
Specifications
- Laser Type: Nd:YAG Pulsed Laser
- Power: 200W
- Wavelength: 1064 nm
- Pulse Energy: 100 J (Max)
- Pulse Width: 0.1 20 ms
- Frequency: 1 50 Hz
- Spot Size: 0.2 2.0 mm
- Precision: 0.01 mm
- Cooling System: Water Cooling
- Power Supply: 220V / 50Hz
Applications
- Gold and silver jewellery repair
- Chain and ring welding
- Stone setting work
- Crack and porosity filling
- Micro welding of small components
Advantages
- No need for traditional soldering flame
- Minimal heat affected zone
- Saves time and labor
- High quality finishing
- Safe for delicate jewellery
Specification
|
Laser Source and wavelength
|
Nd : YAG 1064nm
|
|
Average Power
|
230W
|
|
Peak Power (kw)
|
6.5kw
|
|
Energy (Joule )
|
0.1+100j
|
|
Impulse time
|
0.1 + 20 Ms
|
|
Pulse frequency
|
05 + 30 Hz
|
|
Spot diameter
|
0.2 + 2.0 mm
|
|
Programs
|
Pulse wave shape 6
|
|
Memories for programs
|
100
|
|
Internal Control
|
Joystick
|
|
External control
|
8 Color Touch Screen
|
|
Input power
|
230 V AC, 50/60 Hz
|
|
Max Current
|
8A
|
|
Max dimension (W x D x H)
|
L930 +W 340 + H 720 (mm)
|
|
Type
|
Bench model (+Pedestal on request
|
|
Argon /Air nozzle
|
Yes /Yes
|
|
Microscope Mod.
|
Binoculars 10 x
|
|
Integrated camera
|
Yes
|
|
Interior Lighting
|
LED
|
